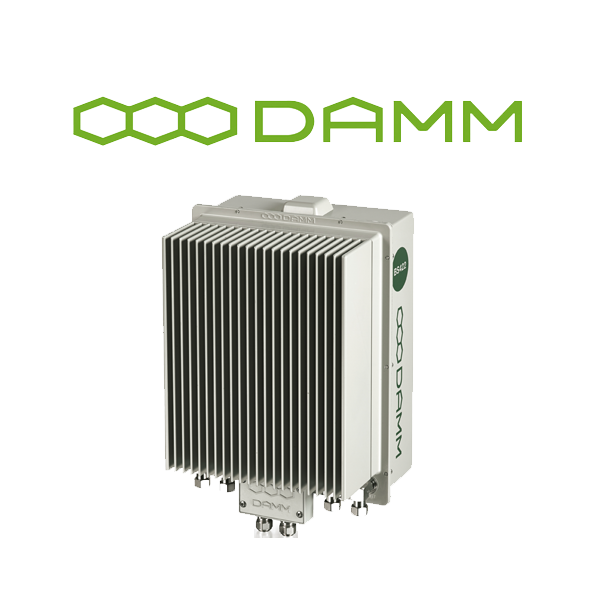

BS422 is a multi-carrier, multitechnology outdoor base station. The base station is a supplement to DAMM’s current portfolio of TETRA base stations, by being much more than just a TETRA base station.
It can operate up to four logical carriers, each in any technology mode:
• TETRA
• DMR Tier III
• DMR Tier II
• Analog
• TEDS (TETRA Enhanced Data Service)
at the same time, any combination.

Standard:

DMR Tier 2 DMR Tier 3 TETRA

BS424-2/4 indoor base station

BS424-2 (BS424-4) is a multi-carrier multi-standard indoor base station.
DAMM BS424-2 (BS424-4) is an 8-carrier (BS424-2) or 16-carrier (BS424-4) MultiTech (TETRA/DMR Tier2 / DMR Tier3/ Analog) indoor system in one rack and is complementary to MultiTech Outdoor Base Station BS422 and other base stations.
The BS424-2 (BS424-4) may be used in networks where high traffic capacity is required (up to 31 or 63 traffic channels).

Available a high power version with 50W at TX connector for TETRA and up to 100W at TX connector for DMR.

SB422 outdoor Service box

SB422 is Service Box for BS422 or BS421 Base stations
The DAMM Service Box SB422 is designed to provide full physical support for up to two DAMM BS422 or two BS421 base stations, containing a powerful base station controller and power supply connections including
internal battery options as well as Ethernet connections.

DAMM Gateway Node

DAMM TetraFlex® Gateway Node

When gateways and applications are critical to your operations, you need a professional, dedicated server platform.
Data are stored on mirrored, swappable RAID hard drives, to guard against losing critical data and services or down-time due to drive failure.
The Server comes pre-installed with software of TetraFlex® Gateway Node, with following functiones active, depending on acquired licenses:
o Voice Gateway
o Application Gateway
o Terminal Gateway
o Packet Data Gateway
DAMM TetraFlex® Gateway Node is a part of Core of the TetraFlex system and connected to it via LAN. It is also equipped with WAN interface to give access to external services like Dispatcher, Applications, Phone systems, PoC subcribers etc.

DAMM Dispatcher Light

DAMM TetraFlex® Dispatcher Light

The DAMM TetraFlex Dispatcher Light is a scaled-down version of the full DAMM TetraFlex Dispatcher. It is a cost-efficient Windowsbased solution to ensuring cross-company communication between all employees whether in the field with a TETRA radio or a smartphone running the DAMM TetraFlex PTT app or in the office with a PABX phone or a dispatcher.
The Dispatcher Light is a software package included in the DAMM TetraFlex software, allowing you to be instantly up and running with dispatcher functionalities. It connects to the DAMM TetraFlex network via a terminal gateway. For file transfer and status SDS messages, connection to a HTTP service on the IP backbone is needed.
It is possible to set up multiple connection profiles and user profiles in the same Dispatcher Light. This enables monitoring of different networks using the same application.

Network Management

DAMM TetraFlex® Network Management

The DAMM Network Management is a software package included in the TetraFlex® software.
It is installed on each node either BSC412 (indoor system) or SB421/SB422/BS422 (outdoor systems). The Network Management connects to the system via one node via the LAN network interface and can be run either on a separate machine or started via remote desktop session directly on the node. Network Management establishes connection to all nodes of a multi-site system and parameters can be configured to any of the nodes, no matter to which node you are connected.
The Network Management software is dongle controlled, but can be executed with any DAMM TetraFlex® dongle.

Log Server

DAMM TetraFlex® Log Server

The DAMM Log Server is a software package designed to record voice and statistics of DAMM TetraFlex system.

When call recording is critical to operations, there is a need for a professional, dedicated voice logging system. Call Data Records (CDR), voice and data are stored for documentation or playback on a professional platform.

The Voice & Data Logging system is used in combination with one or more log clients that typically are installed on separate PC’s but can also run direct on the BSC412 or SB421/SB422/BS422.

DAMM Dispatcher

DAMM TetraFlex® Dispatcher

The DAMM TetraFlex Dispatcher (Dispatcher) provides features for increased efficiency in organizations managing a fleet of subscribers with the needs of command, control and monitoring of radio communications.
The Dispatcher is a software package included in the DAMM TetraFlex software, allowing you to be instantly up and running with dispatcher functionalities.
The Dispatcher requires a dongle to connect to the system via the WAN network interface with an Application Gateway. This gateway is also used to connect to the application server that enables the geofencing function. For file and video transfer connection to a HTTP service on the IP backbone is needed.
It is possible to set up multiple connection profiles and user profiles in the same Dispatcher and even run multiple instances of the Dispatcher on the same machine. This enables monitoring of different networks using the same application.
