BS422 innovative outdoor base station
BS422 is a multi-carrier, multitechnology outdoor base station. The base station is a supplement to DAMM’s current portfolio of TETRA base stations, by being much more than just a TETRA base station.
It can operate up to four logical carriers, each in any technology mode:
• TETRA
• DMR Tier III
• DMR Tier II
• Analog
• TEDS (TETRA Enhanced Data Service)
at the same time, any combination.Standard:DMR Tier 2 DMR Tier 3 TETRA -
BS418 indoor base station
BS418 is a multi-carrier indoor TETRA base station.
DAMM BS418 is an eight-carrier TETRA indoor system in one rack or sixteen-carrier in two 19″ racks and is complementary to DAMM BS421 and BS418 TETRA systems and the DAMM MultiTech Outdoor Base Station BS422.
The BS418 may be used in networks where high traffic capacity is required (up to 63 traffic channels with two 19″ racks).Available a high power version with 25W at TX connector. Item BS418H.
Standard:TETRA -

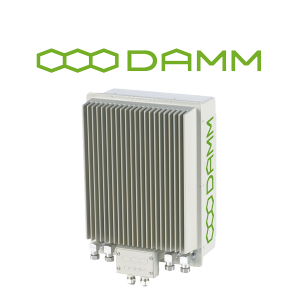

BS421 outdoor base station
BS421 is a single-carrier outdoor base station.
The BS421 can be used as base stations in large networks in areas where moderate traffic capacity is required (three traffic channels with a single BS421, up to 15 traffic channels with up to four BS421s). The BS421 is developed to be used, together with the DAMM SB421 Service Box containing the base station controller software.Standard:TETRA -
SB422 outdoor Service box
SB422 is Service Box for BS422 or BS421 Base stations
The DAMM Service Box SB422 is designed to provide full physical support for up to two DAMM BS422 or two BS421 base stations, containing a powerful base station controller and power supply connections including
internal battery options as well as Ethernet connections. -

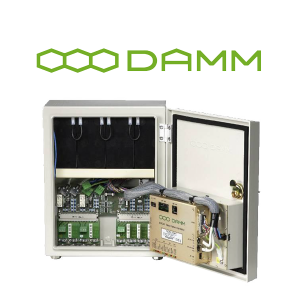

SB421 outdoor Service box
SB421 is Service Box for BS421 Base station
The DAMM SB421 Service Box offers full physical support for up to two DAMM BS421 base stations and contains a Base Station Controller, a Power Supply, and space for optional Built-in Batteries and plugs to LAN connections boards to 2 BS421 and WAN connection to IP backbone. -
DAMM Gateway Node
DAMM TetraFlex® Gateway Node
When gateways and applications are critical to your operations, you need a professional, dedicated server platform.
Data are stored on mirrored, swappable RAID hard drives, to guard against losing critical data and services or down-time due to drive failure.
The Server comes pre-installed with software of TetraFlex® Gateway Node, with following functiones active, depending on acquired licenses:
o Voice Gateway
o Application Gateway
o Terminal Gateway
o Packet Data Gateway
DAMM TetraFlex® Gateway Node is a part of Core of the TetraFlex system and connected to it via LAN. It is also equipped with WAN interface to give access to external services like Dispatcher, Applications, Phone systems, PoC subcribers etc.
