BS422 innovative outdoor base station
BS422 is a multi-carrier, multitechnology outdoor base station. The base station is a supplement to DAMM’s current portfolio of TETRA base stations, by being much more than just a TETRA base station.
It can operate up to four logical carriers, each in any technology mode:
• TETRA
• DMR Tier III
• DMR Tier II
• Analog
• TEDS (TETRA Enhanced Data Service)
at the same time, any combination.Standard:DMR Tier 2 DMR Tier 3 TETRA -

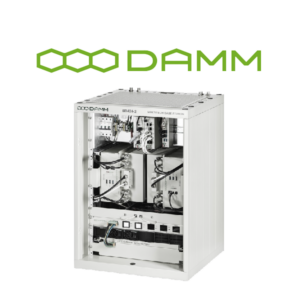

SB422 outdoor Service box
SB422 is Service Box for BS422 or BS421 Base stations
The DAMM Service Box SB422 is designed to provide full physical support for up to two DAMM BS422 or two BS421 base stations, containing a powerful base station controller and power supply connections including
internal battery options as well as Ethernet connections. -
DAMM Gateway Node
DAMM TetraFlex® Gateway Node
When gateways and applications are critical to your operations, you need a professional, dedicated server platform.
Data are stored on mirrored, swappable RAID hard drives, to guard against losing critical data and services or down-time due to drive failure.
The Server comes pre-installed with software of TetraFlex® Gateway Node, with following functiones active, depending on acquired licenses:
o Voice Gateway
o Application Gateway
o Terminal Gateway
o Packet Data Gateway
DAMM TetraFlex® Gateway Node is a part of Core of the TetraFlex system and connected to it via LAN. It is also equipped with WAN interface to give access to external services like Dispatcher, Applications, Phone systems, PoC subcribers etc. -
DAMM APP PTT
DAMM TetraFlex® PTT (Android and iOS)
The TetraFlex® PTT (Android and iOS) is enabling users to log on to a TetraFlex® network as a registered soft terminal being a fully integrated part of the TetraFlex® communication system.
The TetraFlex® PTT (Android and iOS) registers in the TetraFlex® system similar to other Tetra terminals with its own SSI number and user number set up in the subscriber register with a Profile associated and with defined Group(s).
The TetraFlex® PTT (Android and iOS) is supported from TetraFlex® software version 7.7.8 and onwards. The TetraFlex® PTT (Android and iOS) communicates to all terminal types of the subscriber register, including unified numbering, allowing call forwarding or simultaneous ringing of different devices. -
DAMM Dispatcher Light
DAMM TetraFlex® Dispatcher Light
The DAMM TetraFlex Dispatcher Light is a scaled-down version of the full DAMM TetraFlex Dispatcher. It is a cost-efficient Windowsbased solution to ensuring cross-company communication between all employees whether in the field with a TETRA radio or a smartphone running the DAMM TetraFlex PTT app or in the office with a PABX phone or a dispatcher.
The Dispatcher Light is a software package included in the DAMM TetraFlex software, allowing you to be instantly up and running with dispatcher functionalities. It connects to the DAMM TetraFlex network via a terminal gateway. For file transfer and status SDS messages, connection to a HTTP service on the IP backbone is needed.
It is possible to set up multiple connection profiles and user profiles in the same Dispatcher Light. This enables monitoring of different networks using the same application. -
Network Management
DAMM TetraFlex® Network Management
The DAMM Network Management is a software package included in the TetraFlex® software.
It is installed on each node either BSC412 (indoor system) or SB421/SB422/BS422 (outdoor systems). The Network Management connects to the system via one node via the LAN network interface and can be run either on a separate machine or started via remote desktop session directly on the node. Network Management establishes connection to all nodes of a multi-site system and parameters can be configured to any of the nodes, no matter to which node you are connected.
The Network Management software is dongle controlled, but can be executed with any DAMM TetraFlex® dongle. -
Log Server
DAMM TetraFlex® Log Server
The DAMM Log Server is a software package designed to record voice and statistics of DAMM TetraFlex system.
When call recording is critical to operations, there is a need for a professional, dedicated voice logging system. Call Data Records (CDR), voice and data are stored for documentation or playback on a professional platform.
The Voice & Data Logging system is used in combination with one or more log clients that typically are installed on separate PC’s but can also run direct on the BSC412 or SB421/SB422/BS422.
-
DAMM Dispatcher
DAMM TetraFlex® Dispatcher
The DAMM TetraFlex Dispatcher (Dispatcher) provides features for increased efficiency in organizations managing a fleet of subscribers with the needs of command, control and monitoring of radio communications.
The Dispatcher is a software package included in the DAMM TetraFlex software, allowing you to be instantly up and running with dispatcher functionalities.
The Dispatcher requires a dongle to connect to the system via the WAN network interface with an Application Gateway. This gateway is also used to connect to the application server that enables the geofencing function. For file and video transfer connection to a HTTP service on the IP backbone is needed.
It is possible to set up multiple connection profiles and user profiles in the same Dispatcher and even run multiple instances of the Dispatcher on the same machine. This enables monitoring of different networks using the same application. -
Log Client
DAMM TetraFlex® Log Client
The DAMM Log Client is a software package designed to give access to recored voice and statistics of DAMM Log Server.
Network performance statistics
• Radio Cell alarm, timeslot distribution and availability
• Voice GW alarm, channels and availability
• Packet Data GW alarms
• Application GW alarms and availabilityReplay options:
• User defined comprehensive search criteria by specific time intervals, selected subscriber(s) and/or groups or subscriber priorities
• Tetra voice is stored and replayed as separate wave files
• Access to replay application from TetraFlex® Network Management
• Statistical views with flexible time intervals
• Export of calls to wav file for replay in any media-player
