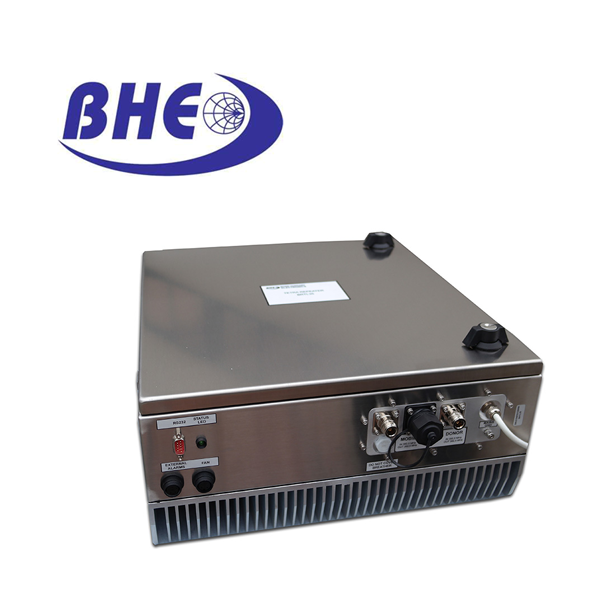

BRTL42
Description
Channel or band selective, off-air, SNMP, +36dbm Uplink / +24 dbm downlink
BRTL42 is intended for use in 400 MHz out- and indoor TETRA systems. Based on the latest digital filter technology this model offers freedom for the users to select the best possilbe filter characteristics for the actual application type. It has perfect EVM parameters of <1% and low power consumption figures.
Supplied in a compact box, the BRTL42 is an ideal choice to be used in areas where the flexible filter selection is essential for smooth operation and/or network design. The unit can be monitored and set locally and remotely.
Type 1 – 4 channels with different and independent filters, 2G/4G modem, SNMPv2, IP40, 220VAC
Type 2 – 8 channels with fixed and narrowband filters, Ethernet, SNMPv2, IP40, 220VAC
Type 3 – 8 channels with fixed and narrowband filters, RS232, SNMPv2, IP65, 48VDC
other options are available upon request.
4 W RF OUTPUT POWER
DIGITAL FILTER TECHNOLOGY (SDR)
FLEXIBLE FILTER SELECTION
FREQUENCY SHIFT FUNCTION
HIGH DYNAMIC RANGE
LOW POWER CONSUMPTION
RS-232 and ETHERNET CONTROL INTERFACE
COMPACT SIZE
UP TO 8 CHANNELS
SNMP control
Characteristics
| Parameter | Value |
| Frequency band, Duplex spacing, Bandwidth (MHz) | 380-400, DUX=10, LB=5 400-430, DUX=10, LB=5 450-470, DUX=10, LB=5 |
| Type | channel or band selective |
| Gain | from 60 to 90 db |
| Max Output power | 4W, +36 dbm (downlink)/ +24 dbm (uplink) |
| Control | RS232, Ethernet |
| Ethernet | 10/100Mbit (RJ45) |
| RF connectors | N-female |
| Power consumption | 110W |
| Dimensions (HxWxD) | 420x400x158mm |
| Weight | 24 kg |
| Operating temperature range | -0°C to +55°C (standard) -20°C to +55°C (special) |
| Encapsulation | IP40 or IP65 |
