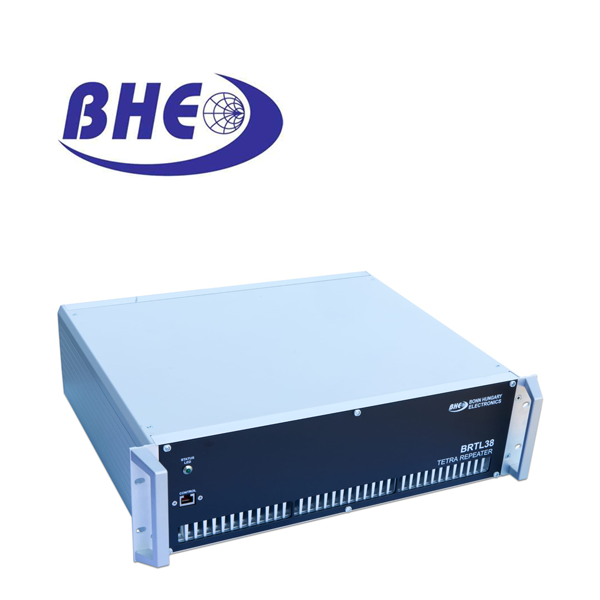

BRTL38
Description
Band selective, off-air, SNMP, +36dbm Uplink / +24 dbm downlink, 19″ rackmount design
BRTL38 is intended for use in 400 MHz out- and indoor TETRA systems. Based on the latest digital filter technology this model offers freedom for the users to select the best possilbe filter characteristics for the actual application type. It has perfect EVM parameters of <1% and low power consumption figures.
The unit can be monitored and set locally and remotely.
4 W RF OUTPUT POWER
19” RACKMOUNTABLE DESIGN
SNMP control
Characteristics
| Parameter | Value |
| Frequency band, Duplex spacing, Bandwidth (MHz) | 380-400, DUX=10, LB=5 400-430, DUX=10, LB=5 450-470, DUX=10, LB=5 |
| Type | band selective |
| Gain | from 60 to 90 db |
| Max Output power | 4W, +36 dbm (downlink)/ +24 dbm (uplink) |
| Control | RS232, Ethernet |
| Ethernet | 10/100Mbit (RJ45) |
| RF connectors | N-female |
| Power consumption | 120W |
| Dimensions (HxWxD) | 19″x 3U x 375 mm |
| Weight | 25 kg |
| Operating temperature range | -0°C to +45°C |
| Encapsulation | IP20 |
