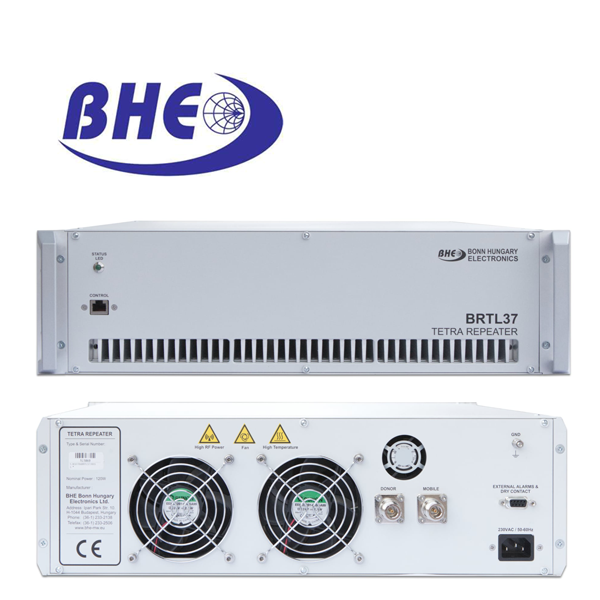

BRTL37
Description
Channel and Band selective, off-air, SNMP, +36dbm Uplink / +24 dbm downlink, 19″ rackmount design
BRTL37 is intended for use in 400 MHz out- and indoor TETRA systems. Based on the latest digital filter technology this model offers freedom for the users to select the best possilbe filter characteristics for the actual application type. It has perfect EVM parameters of <1% and low power consumption figures.
The unit can be monitored and set locally and remotely.
19” RACKMOUNTABLE DESIGN
4 W RF OUTPUT POWER
DIGITAL FILTER TECHNOLOGY (SDR)
FLEXIBLE FILTER SELECTION
FREQUENCY SHIFT FUNCTION
HIGH DYNAMIC RANGE
LOW POWER CONSUMPTION
RS-232 and ETHERNET CONTROL INTERFACE
COMPACT SIZE
UP TO 8 CHANNELS
SNMP control
Characteristics
| Parameter | Value |
| Frequency band, Duplex spacing, Bandwidth (MHz) | 380-400, DUX=10, LB=5 400-430, DUX=10, LB=5 450-470, DUX=10, LB=5 |
| Type | Channel and band selective |
| Gain | from 60 to 90 db |
| Max Output power | 4W, +36 dbm (downlink)/ +24 dbm (uplink) |
| Control | RS232, Ethernet |
| Ethernet | 10/100Mbit (RJ45) |
| RF connectors | N-female |
| Power consumption | 120W |
| Dimensions (HxWxD) | 19″x 3U x 370 mm |
| Weight | 20 kg |
| Operating temperature range | -0°C to +45°C |
| Encapsulation | IP20 |
