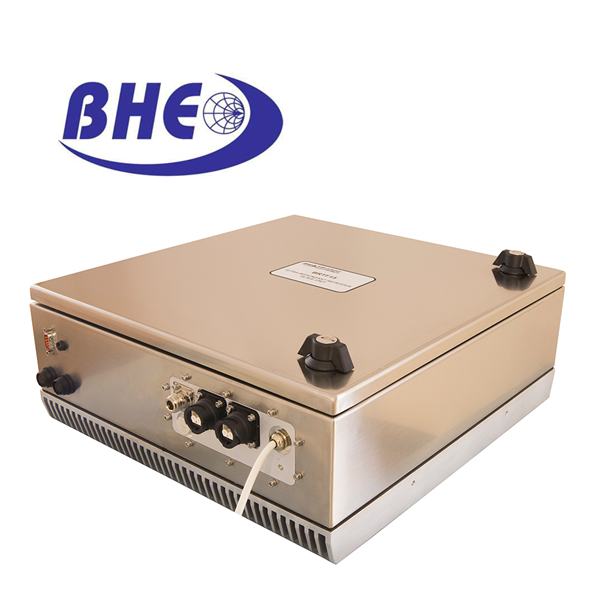

BRTF15
Description
Remote optical unit, Dual FO feed, wall mount, +36 dbm
This repeater is intended to use for TETRA in or outdoor optical fibre systems. It is a compact and reliable unit, and it is especially advantageous to use it in areas where off air transmission is not preferable (like tunnels, large buildings etc.). The base station side optical master unit can communicate, control and monitor – through optical fiber – the slave unit on the remote repeater side. In order to increase the redundancy the slave has two independent optical connectors and it can automatically switch from one optical source to the other source if it sense some failure. This very economical solution can be installed easily, and the repeater can be set and monitored using the bundled remote control software.
4W COMPOSITE RF OUTPUT POWER
REDUNDANT OPTICAL CONNECTIONS
HIGH SENSITIVITY
HIGH DYNAMIC RANGE
Ficha de dados de BRTF15 (.pdf, 126k)
Characteristics
| Parameter | Value |
| Frequency band, Duplex spacing, Bandwidth (MHz) | 380-400, DUX=10, LB=5 400-430, DUX=10, LB=5 450-470, DUX=10, LB=5 |
| Type | Remote unit |
| Number of optical ports | 2 |
| Gain | from 40 to 65 db |
| Max RF output power | +36 dbm |
| Max optical loss | 15 dbo |
| Optical connectors | LC/PC |
| RF connector | N-female |
| Power consumption | up to 100 W |
| Power Supply | +48 VDC or 220VAC |
| Dimensions (HxWxD) | 420 x 400 x 175 mm |
| Weight | 25 kg |
| Operating temperature range | 0°C to +45°C
-20°C to +55°C (option) |
| Local control | RS232 |
| Encapsulation | IP65 |
